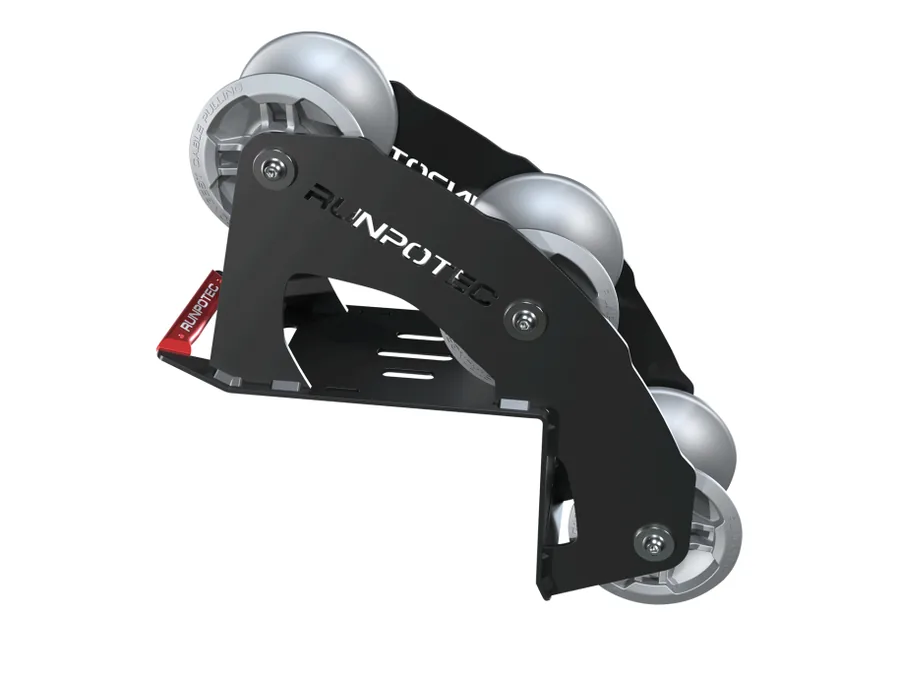

Cable guide roller -  90 degrees 3R Accessories

Cable guide roller - 90 degrees 3R

for corners and edges

Art.Nr 10189 EAN 9120045477047 Available

Product Description

The cable guide roller - 90 degrees 3R is ideally suited for use on various edges to pull cables gently around corners with the least possible resistance. It can be secured in place with a belt or screws via the assembly openings. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle - Load capacity 2500 kgOptimum area of application: to pull cables gently and effortlessly around corners or edgesApplication video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x Cable guide roller - 90 degrees 3R

to pull cables gently and effortlessly around corners or edges, CDP/ powder coated frame, ergonomic aluminium handle

Highlights

  • Aluminium heavy-duty rollers with stainless steel ball bearings
  • Robust metal frame
  • CDP and powder coated
  • Ergonomic aluminium carrying handle
  • Load capacity 2.500 kg

Technical Data

Product family
Accessories & Spare Parts
Dimensions
370 mm x 252 mm x 522 mm
Weight
11,51 kg (Gross weight)
Material
Roller: Aluminium │ Frame: Steel
Load bearing capacity
2.500 kg
Max. cable diameter
Ø 100 mm
Roll diameter
Ø 130 mm
EAN-Code
9120045477047
Origin
Austria
Model group
CAM2
