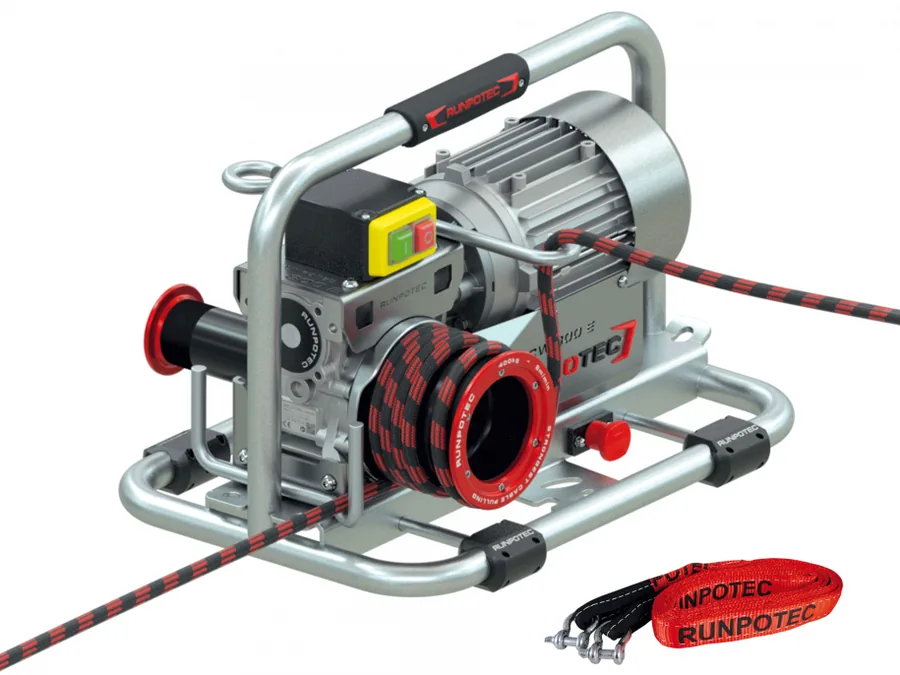

CW 800 E capstan winch without trolley

Product Description

The CW 800 E capstan winch is ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg. The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons. Optimal area of application: for horizontal cable pulling.Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x CW 800 E capstan winch, 1 x 3 m strap

Highlights

• One person can pull up to 800 kg with the CW 800 E capstan winch
• Selectable traction force or traction speed 800 kg|400 kg
• Small, compact, handy
• Many mounting options
• Safety rope guide
• Overload protection

Technical Data

Product family

Cable Pulling Systems

Dimensions

1060 mm x 380 mm x 370 mm

Weight

35 kg (Gross weight)

Strap length

3 Meter

Motor connection

230 V / 50 Hz

Motor drive power

0,75 KWh / 5,1 A

Motor speed

1400 U / min

Capstan (Small) Pulling force

up to 800 kg at 4m per min.

Capstan (Large) Pulling force

up to 400 kg at 8m per min.

Protection rating

IP 55

EAN-Code

9120045475715

Origin

Austria

Model group

CAM
