GF3 - Ø 3mm with meter counter - 20 m

Name: GF3 - Ø 3mm with meter counter - 20 m
Brand: RUNPOTEC
SKU: 10192
Availability: InStock

Cable pulling tool for pipe-ID Ø 9-45mm

Art.Nr 10192 EAN 9120045476729 Available

Select Size / Variant

3 options

20 m 30 m 50 m

Buy on Hepsielektrik Ask on WhatsApp

Product Description

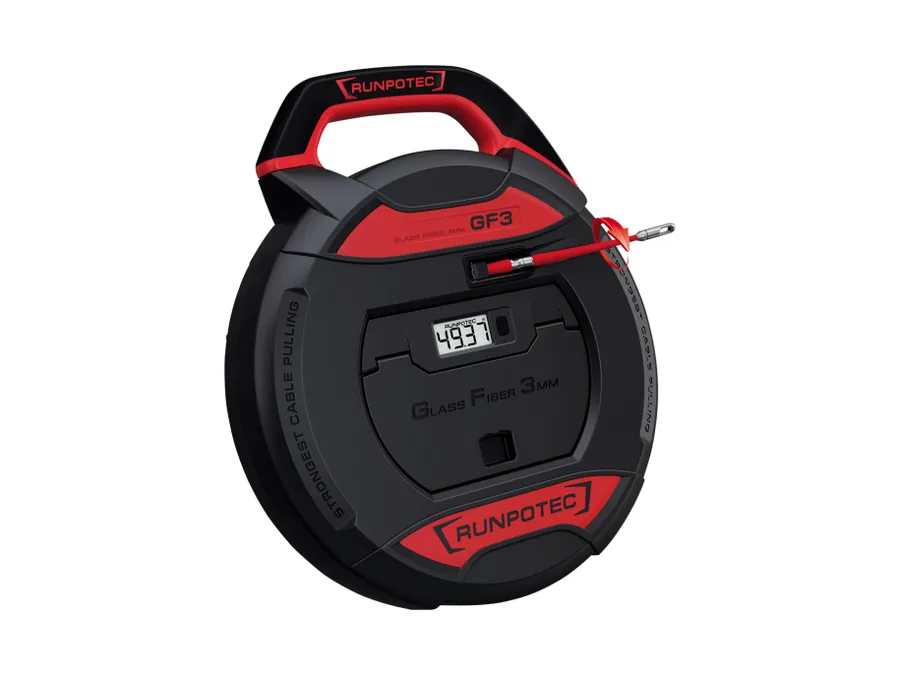

GF3 - Cable pulling tool incl. digital meter counter, glass fibre rod Ø 3 mm with kink protection ending joint (internal thread RTG Ø 6 mm) and patented guiding head with twist adjustment (2 x external thread RTG Ø 6 mm). Stowed in a shock-proof plastic box. The box is splash-water and dust-proof, extremely shock-proof and therefore ideally suited for the construction site. The GF3 plastic box can be opened with only a single screw for service work. The glide-back protection (only stops the RG7 guiding head, including kink protection) prevents the fibreglass rod from accidentally slipping back into the box. Furthermore, the box has an ergonomic carrying handle and an anti-slip coating. The scope of delivery includes an 18-piece accessory set. The newly developed kink protection technology makes it possible to overcome bending radii of up to R = 38 mm. The specified total breaking load of 130 kg refers to the glass fibre rod incl. kink protection joints. Outstandingly suitable in combination with the RUNPOTEC inspection cameras RC2 or RC3. The cable pulling loop (Ø 14 mm outside) with built-in twist adjustment and protective cap included can be used for one or more cables up to a cable diameter of Ø 12 mm. Quick attachment of the cables to the loop. Any plugs are protected by tensile load on the cable. Optimal field of application: for pipe inner dimension 9 mm - 45 mm. Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x GF3 incl. metre counter in plastic box, length 20 m, kink protection ending joint on both sides (start / end), contents of the accessory box: 1 x guiding head with twist adjustment, 1 x kink protection ending joint RTG Ø 6 mm, 1 x pull-in aid, 1 x special adhesive 3 g, 1 x cable pull loop (Ø 14 mm outside), 6 x adhesive sleeves Ø 3 mm, 3 x pull eyes Ø 7 mm, 1 x starting bulb Ø 11 mm, 1 x connecting sleeve, 2 x mounting-wrench, 1 x button battery CR2032

for pipe inner diameter 9-45 mm/0,3543 - 1,7717 in., bending radius 38 mm/1,4961 in., automatic glide back proctection (only stopps RG7 Guiding head), rod tip guide tip: swivel and kink protection-ending joint, rod end kink protection-ending joint

Highlights

Integrated digital meter counter - ft/ m
Guiding head with swivel and kink protection
Automatic glide back protection (only stops the RG7 guiding head, including kink protection)
Easy service access - open with a single screw
Shear-stable
Jobsite capable
Splash water & dust proof
Shock- and break proof
