Cable Pulling Available 2 sizes

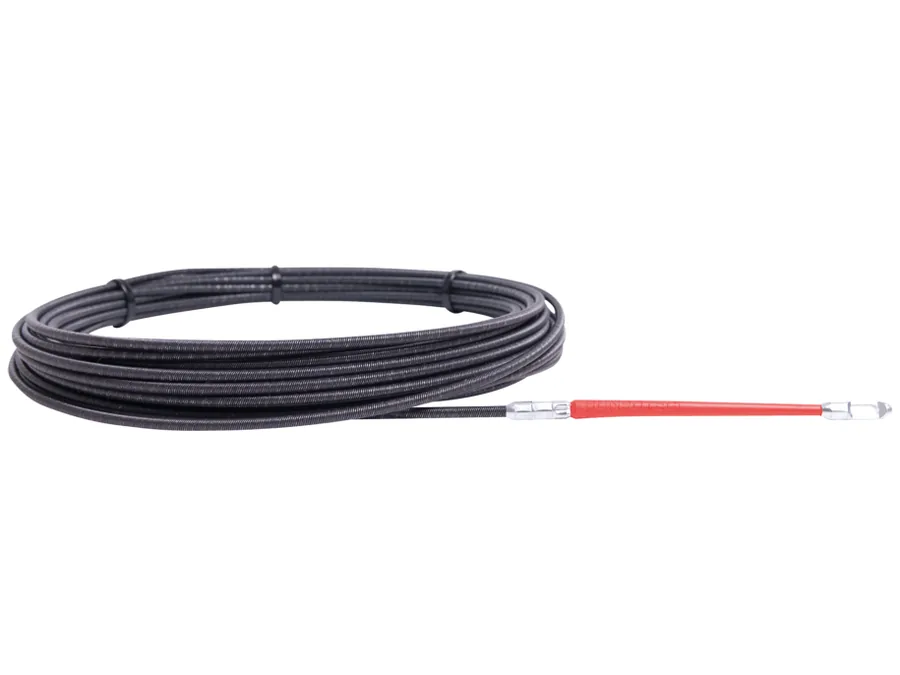

Cable Pulling MET4 Metal spiral Ø 4 mm - 5 m
Cable pulling tape -for pipe-id Ø 9-32mm
Product Description
The MET4 metal spiral Ø 4 mm - cable pulling fish tape is optimally suited in combination with the RT2008 slide-in system. The RT2008 can only be operated fully functional with the MET4 metal spiral. The metal spiral is the only spiral that can be clamped and turned by the locking beacons of the RT2008. Furthermore, the RG6 guiding head enables a unique feed or the overcoming of tightest radii. Optionally the MET4 metal spiral can also be pushed by hand. (Attention! Never use the spiral under live voltage!) Optimal field of application: for pipe inner diameter 9 mm - 32 mm Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x MET4 metal spiral - Length: 5 m incl. 1 x RG6 guiding head at the rod tip and 1 x pressed eyelet Ø 6 mm at the end sleeve
optimal for pipe inner diameter 9 - 32 mm/0,3543 - 1,2598 in., pressed on both sides: beginning with RG7 guiding head, ending with eyelet Ø 6 mm/0,2362 in., bending radius 25 mm/0,9843 in., optimal in combination with RUNPOTEC RT2008
Highlights
- Total breaking load 170 kg
- Ideal for pipe-ID Ø 9 - 32 mm
- Including RG6 - Guiding head
- Bending radius 25 mm
Technical Data
- Product family
- Cable Pulling Systems
- Dimensions
- 300 mm x 250 mm x 30 mm
- Length
- 5 Meter
- Bending radius
- 25 mm
- Total breaking load
- 170 kg
- Recommended tube-Ø
- 16 - 32 mm
- Weight
- 0,37 kg (Gross weight)
- Material
- 3 times offset wound metal spiral
- Ø Rod
- 4 mm
- EAN-Code
- 9120045474466
- Origin
- Austria
- Model group
- PSMET
