Roller Systems In stock

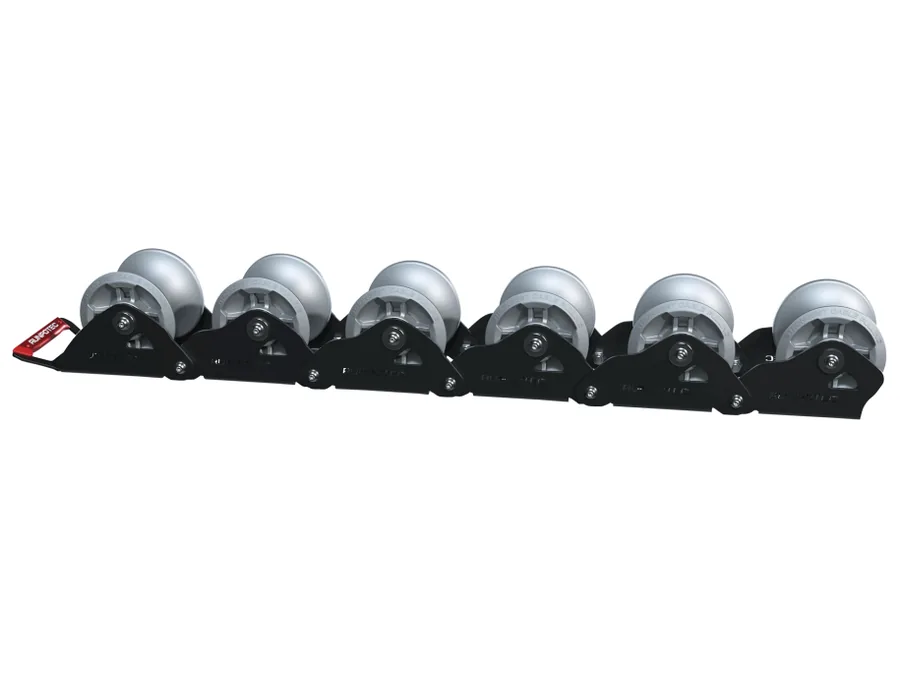

Roller Systems Cable guide roller chain - 6-part
suitable for universal use, shafts
Art.Nr 10201 EAN 9120045477238 Available
Product Description
The cable guide roller - chain is extremely versatile and can be used for pulling cables gently around corners with the least possible resistance. Thanks to its adaptability, it can be used for a wide variety of situations and corners or edges. The cable guide roller - chain can be optionally expanded with additional rollers or links. It can be secured in place with a belt or screws via the assembly opening. The lightweight and highly robust design reduces the effort required with optimum success. The high-quality, die-cast aluminium rollers with integrated ball bearings and the sturdy powder-coated steel frame guarantee a long service life. Ergonomic aluminium handle - Load capacity 4500 kgOptimum area of application: suitable for universal use, shafts, cable trays, columns, etc.Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x Cable guide roller - chain 6-part
suitable for universal use, shafts, cable trays, columns, corner and for horizontal traction support, CDP/ powder coated frame, ergonomic aluminium handle
Highlights
- Aluminium heavy-duty rollers with stainless steel ball bearings
- Robust metal frame
- CDP and powder coated
- Ergonomic aluminium carrying handle
- Load capacity 4.500 kg
Technical Data
- Product family
- Cable Roller Systems
- Dimensions
- 370 mm x 252 mm x 520 mm
- Weight
- 19,37 kg (Gross weight)
- Load bearing capacity
- 4500 kg
- Max. cable diameter
- Ø 100 mm
- Roll diameter
- Ø 130 mm
- EAN-Code
- 9120045477238
- Origin
- Austria
- Model group
- CAM2
