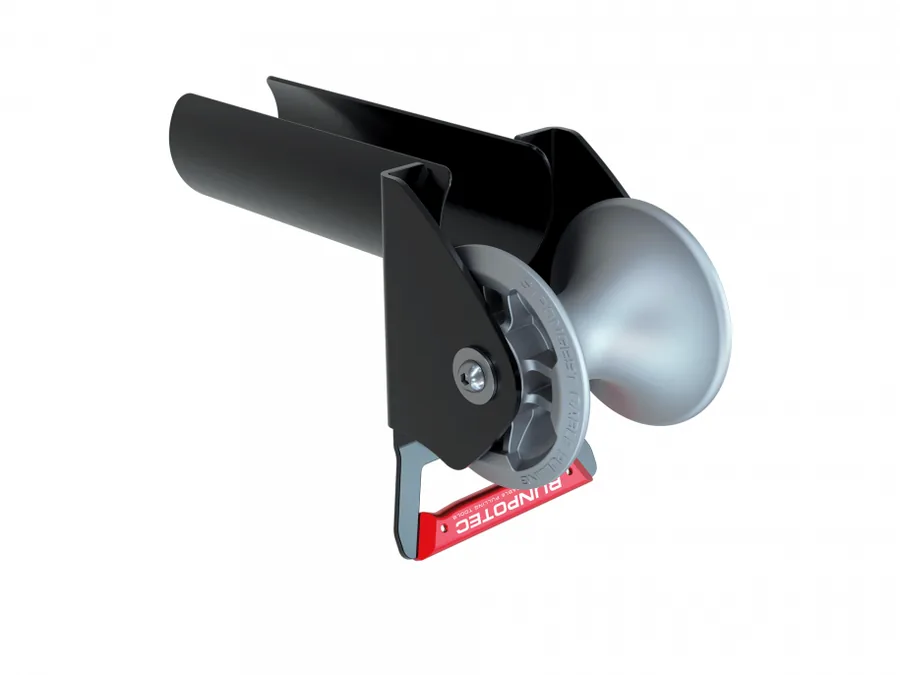

Cable guide roller - insertion tube DM89

Name: Cable guide roller - insertion tube DM89
Brand: RUNPOTEC
SKU: 10223
Availability: InStock

for shaft inlets or outlets

Art.Nr 10223 EAN 9120045478419 Available

Buy on Hepsielektrik Ask on WhatsApp

Product Description

The cable guide roller with DM76 insertion tube has been developed to guide cables around corners and edges with minimal resistance and particular care. It is inserted directly into the tube (internal diameter min. Ø 90 mm - max. Ø 105 mm) and ensures that the cables can be pulled in safely and without friction resistance. The guide roller can be quickly and reliably fixed in place with a screw via the integrated mounting openings. The lightweight but extremely robust design significantly reduces the effort required and enables speedy work. High-quality heavy-duty die-cast aluminium rollers with integrated stainless steel ball bearings and the stable, powder-coated steel frame ensure a long service life. The ergonomic aluminium carrying handle makes handling even easier. With a load capacity of 4500 kg, the cable guide roller is also ideal for demanding applications. Optimal area of application: Gentle and effortless pulling of cables over corners or edges. Scope of supply: 1 x Cable guide roller with insertion tube DM89

For pulling cables around corners or edges gently and with minimal effort, application range pipe Ø 90 mm/3,5433 in. - Ø 105 mm/4,1339 in. (inner diameter), CDP/powder-coated frame, ergonomic aluminum carrying handle
