RP5 meter counter 30m+pull loop hook Set

Name: RP5 meter counter 30m+pull loop hook Set
Brand: RUNPOTEC
SKU: 11153
Availability: InStock

Cable pulling system+ cable pulling loop

Art.Nr 11153 EAN 9120045478631 In stock

Buy on Hepsielektrik Ask on WhatsApp

Product Description

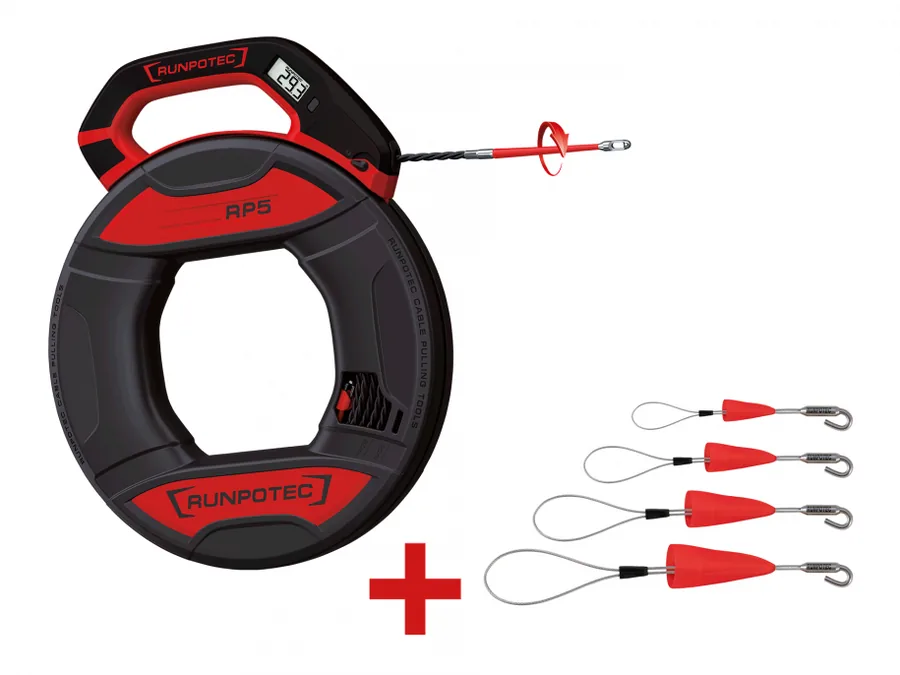

The RP5 - RUNPOTEC Polyester Ø 5.5 mm is a cable pulling tool including a digital meter counter (for determining the length of pipes/cables or for creating cable lists). The triple-twisted special plastic tape Ø 5.5 mm has an even better thrust effect than the glass fibre rod Ø 3 mm and the frictional resistance is only half as great due to its point contact. The patented RG7 guide tip with twist compensation Ø 5.5 mm (pressed at the beginning and end of the tape) enables the tightest radii to be overcome (bending radius 15 mm). The RP5 RUNPOTEC polyester Ø 5.5 mm is stored in a robust storage box with an ergonomic carrying handle that is suitable for use on construction sites. This is equipped with the new reverse feed protection (stops only the RG7 guide tip), which prevents the cable pulling tape from slipping back unintentionally. The unit of measurement on the metre counter can be changed from metric (m) to imperial (ft). The total breaking load of an incredible 270 kg refers to the entire pulling system. Labour-intensive and time-consuming repair work is no longer necessary, as this cable pulling system is virtually unbreakable. The RP5 is available in lengths of 20 m and 30 m. The RP5 replacement tape 40 m cannot be stored in the box. Optimal application: for pipe inner diameters of 9 - 32 mm. + Cable pulling loop with protective cap and hook. Flexible loop made of stainless steel with a diameter of 1.5 mm. Easy attachment of cables to the loop. The protective cap allows cables with plugs to be pulled through pipes or other situations. The hook allows the cable pulling loops to be attached to all products with RG ¬RUNPOGLEITER (guide tip) (RP5, RP1, etc.). Also ideal for attaching or pulling several cables together. Optimal application: From 14 mm inner diameter and non-guided cables Scope of supply: 1 x RP5 cable pulling tool Ø 5,5 mm with digital meter counter in a plastic box, length: 30 m, including 2 x RG7 RUNPOGLEITER with swivel (pressed on both sides), Cable pulling loop with hook set of 4: 1 x protective cap outer Ø 14 mm, 1 x protective cap outer Ø 17 mm, 1 x protective cap outer Ø 23 mm, 1 x protective cap outer Ø 30 mm

RP5: optimal for pipe inner diameter 9 - 32 mm/0,3543 - 1,2598 in., virtually break-free, 50 % less frictional resistance, Cable pulling loop with hook: for conduit (from inner Ø 14 mm/0,5512 in.), for preassembled cables incl. plug or several cables
